Custom Fabrication
Custom Fabrication
Changing the shape of metal roofing with giving your next project a new design with CSI Architectural Metal, Inc. curved panels.

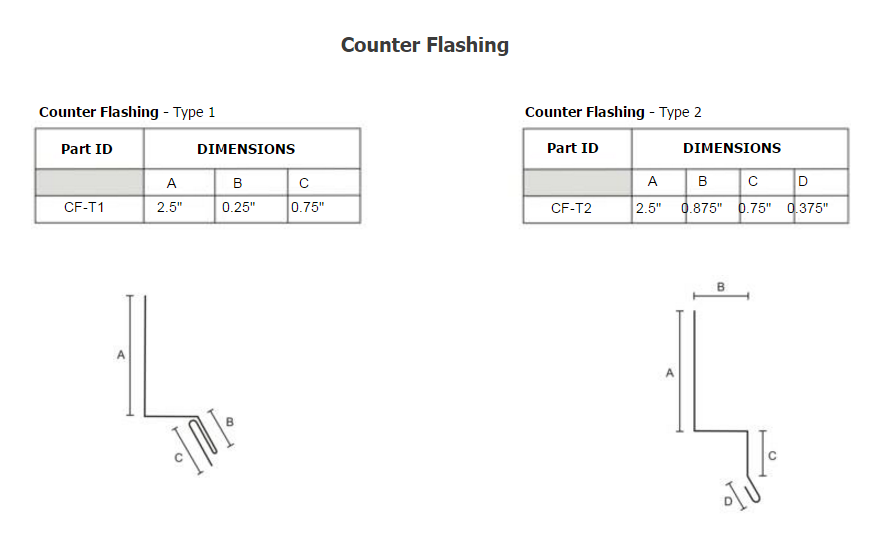

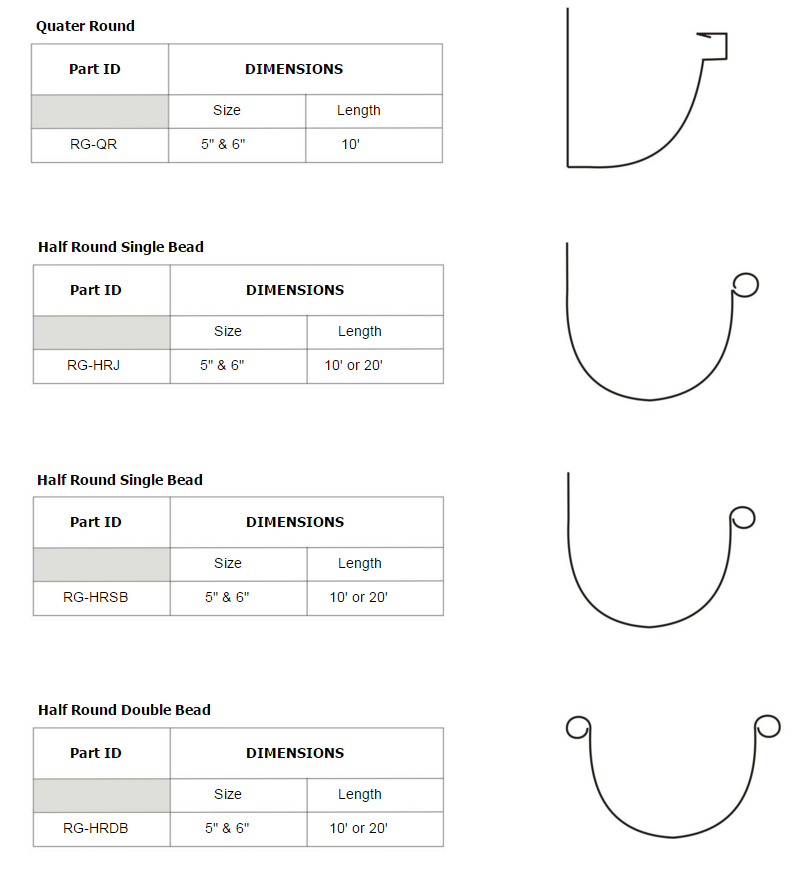

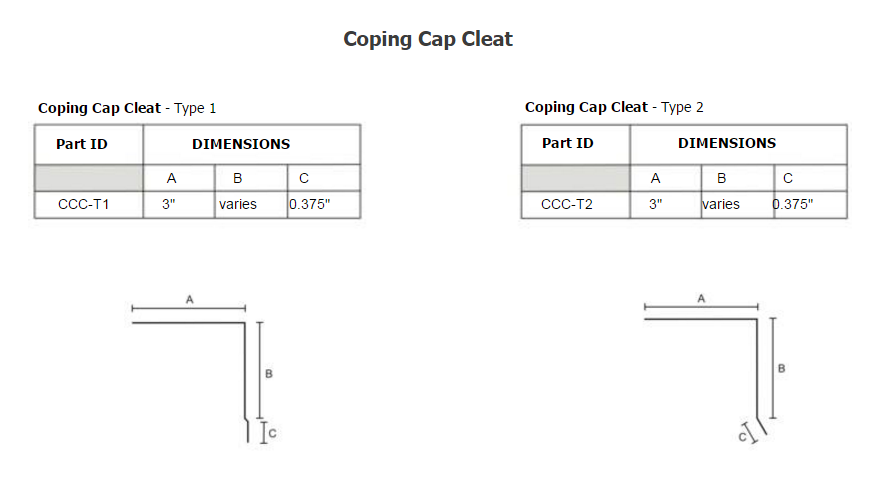

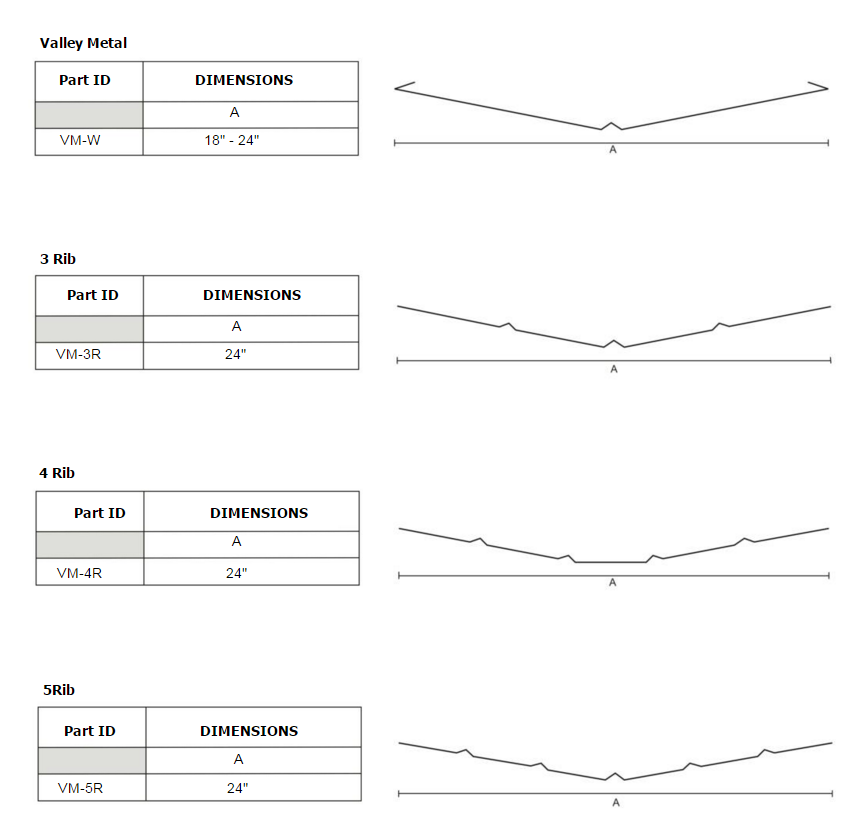

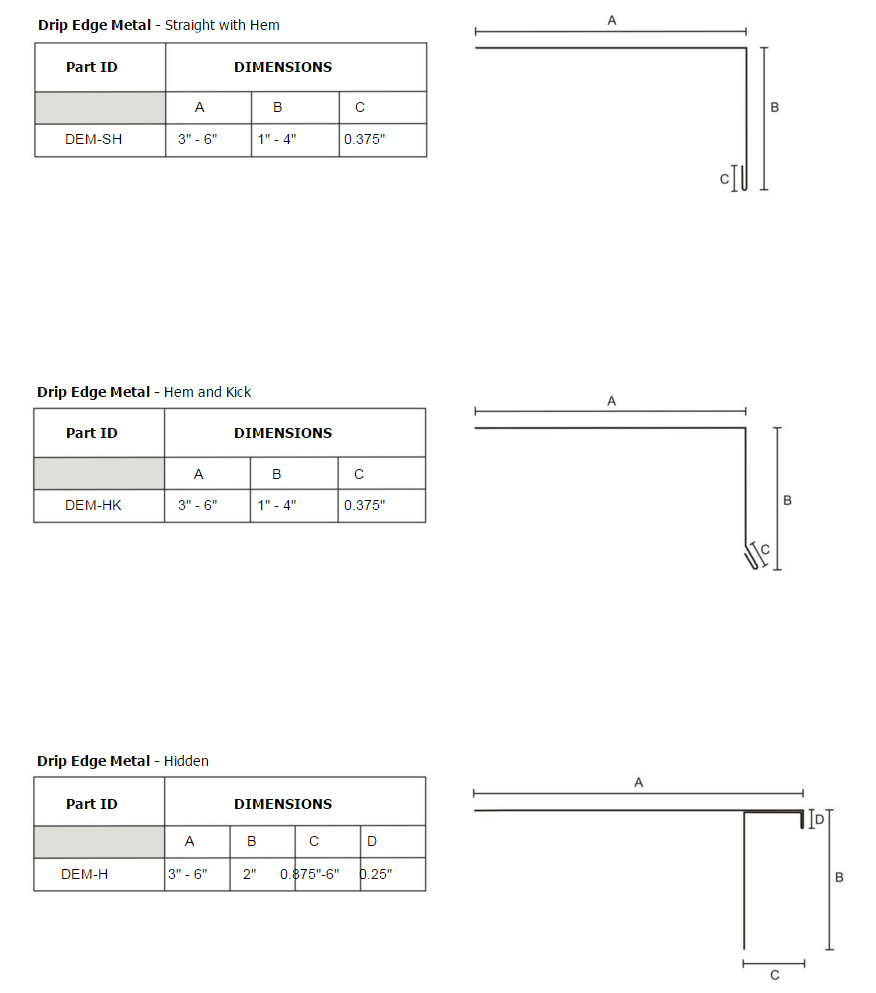

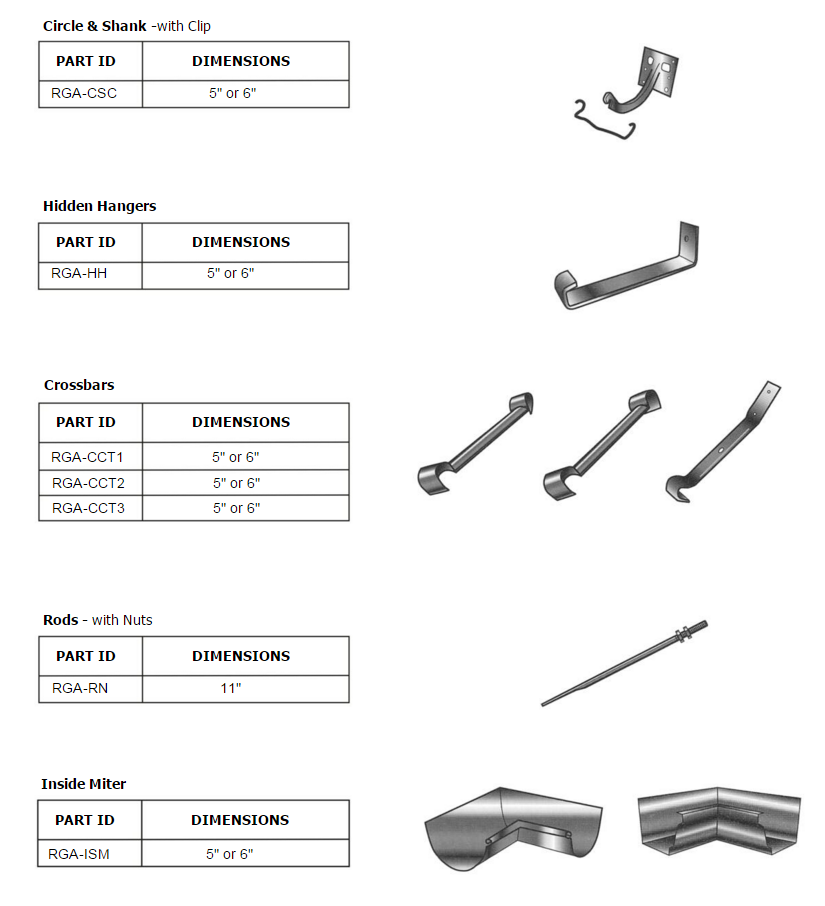

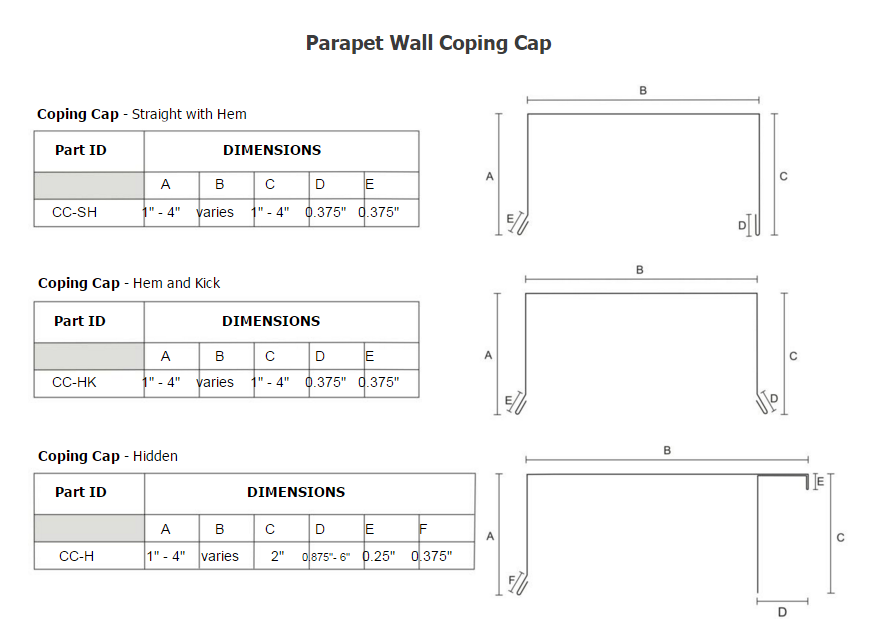

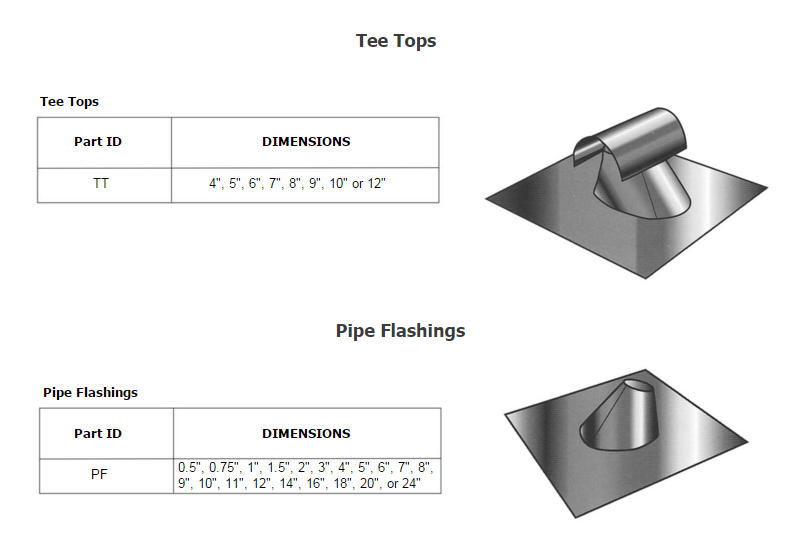

We offer three types of curved Standing Seam Roof and Wall Panels (Angled - and Double Lock Standing Seam 1" & 1.5" and Batten Snap 1") as well as Rain Gutters, Rake Metal, drip Edge, Fascia Panels and various Flashings and Trim Pieces, please ask your Sales Representative for more information.
The following materials may be used:
| Metal Type | ||
|---|---|---|
| Titan Zinc | up to 1mm (20ga) | from a radius of 23.5" |
| Copper | up to 20oz. | from a radius of 23.5" |
| Aluminum | up to 0.044 | from a radius of 23.5" |
| Stainless Steel | up to 26ga | from a radius of 60" (profile height 1") |
| Steel | up to 22ga | from a radius of 60" (profile height 1") |
The axial dimensions of the panels lie between 7.5" and 30"

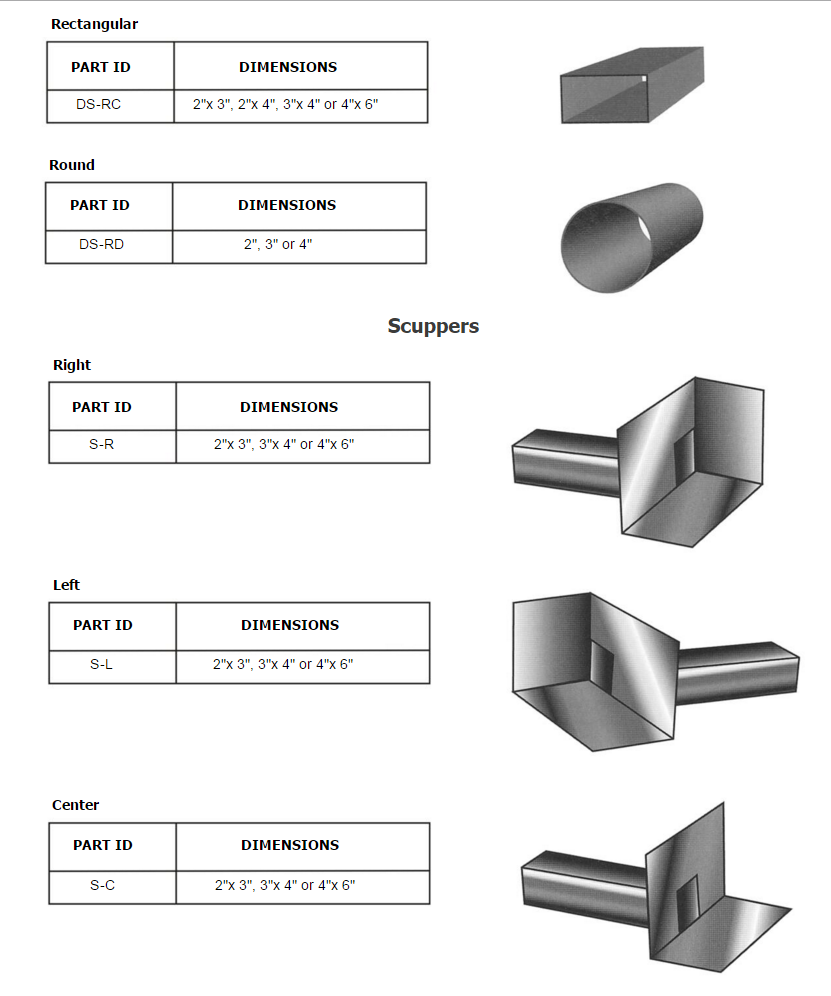

Roof Water Drainage
Roofing & Waterproofing Sheet Metal
Waterproofing, Ventilation & Primer
Waterproofing, Ventilation & Primer
Air-Z and VapoZinc
With RHEINZINK you benefit from our extensive experience and our know-how as well as a range of proven product lines, innovative technology and an appealing design.
Grace Ultra- Self Adhered High Temp Underlayment
In addition, its formulation promotes the adhesion of Grace self-adhered membranes to green concrete and damp surfaces.
CCW WIP 300HT- Self Adhered High Temp Underlayment
Ideal for use under metal
including copper, zinc and COR-TEN® (consult technical department for installation
instructions), WIP 300HT can also be used under synthetic tiles and asphalt shingles.
PAB 101D Primer Plus
Perm-A-Barrier® Primer Plus is a water-based primer which imparts an aggressive, high tack
finish on the treated substrate.
BIT 140B Primer B2 LVC1 - Concrete & Damp Substrates
Bituthene® Adhesive Primer B2 LVC is a low VOC primer in solvent specially formulated
to provide good initial adhesion of Grace self-adhered membranes.
Delta Trela Brochure
DELTA®-TRELA/DELTA®-TRELA PLUS prevents moisture accumulation under metal roofs.

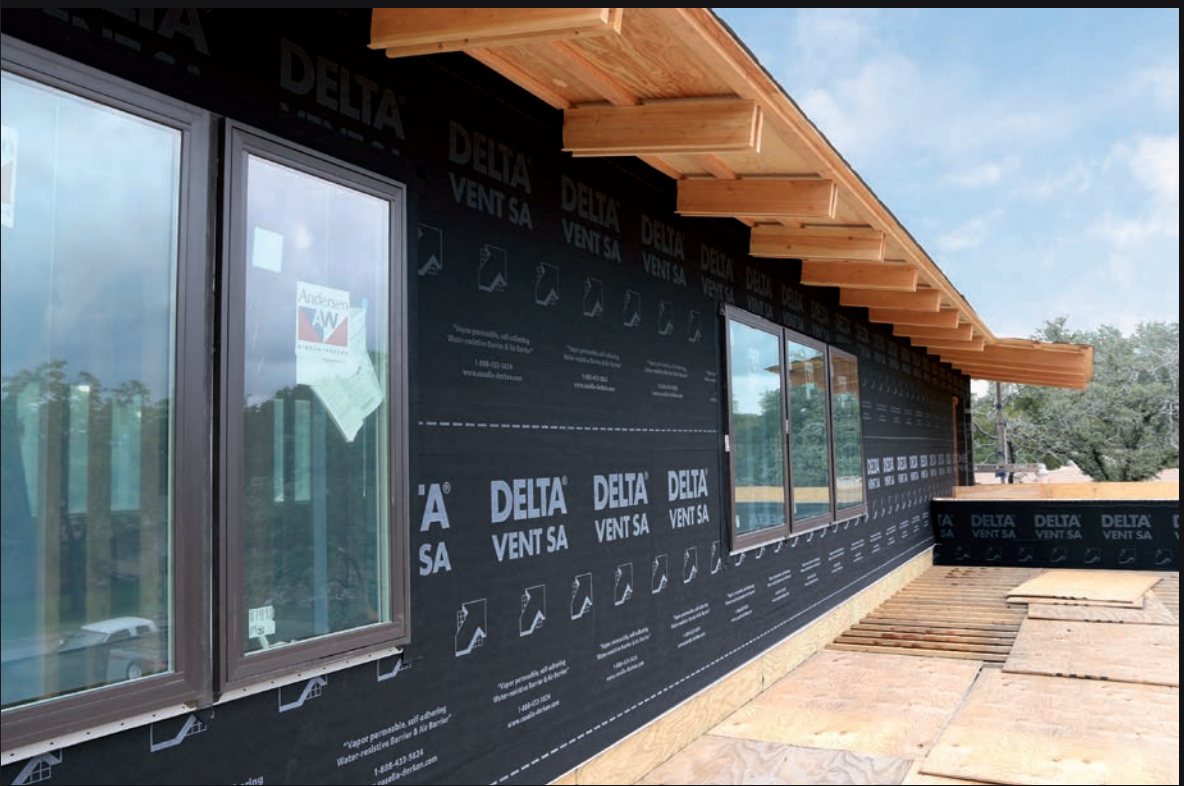

Delta-Vent SA (Self Adhered) Brochure
DELTA®-VENT SA is fully adhered to the substrate so fasteners
are not required. Hundreds of potential air leakage points are eliminated.
Delta Vent SA (Self Adhered)- Technical Guide
Cosella-Dörken Products, Inc. is a subsidiary of the Dörken Group that has over 100 years of experience in the construction industry.
Delta Fassade S (UV-Resistant) Brochure
Wall claddings featuring very wide open joints offer new design options.
Bonar Enkamat 7010
Enkamat® 7010 is a 3-dimensional turf reinforcement mat (TRM) made of continuous monofilaments fused at their intersections.
Engineered Metal Systems & Weather Tightness Warranty
Engineered Metal Systems & Weather Tightness Warranty
Enduring Metals Inc. offers project-consulting from the design-stage until completion, assisting with project-specific application details, providing engineered calculation on Wind Uplift, and conducting several inspections of the waterproofing & metal component installation. After the final and successful inspection EMI issues a 10/20* year weather-tightness warranty.

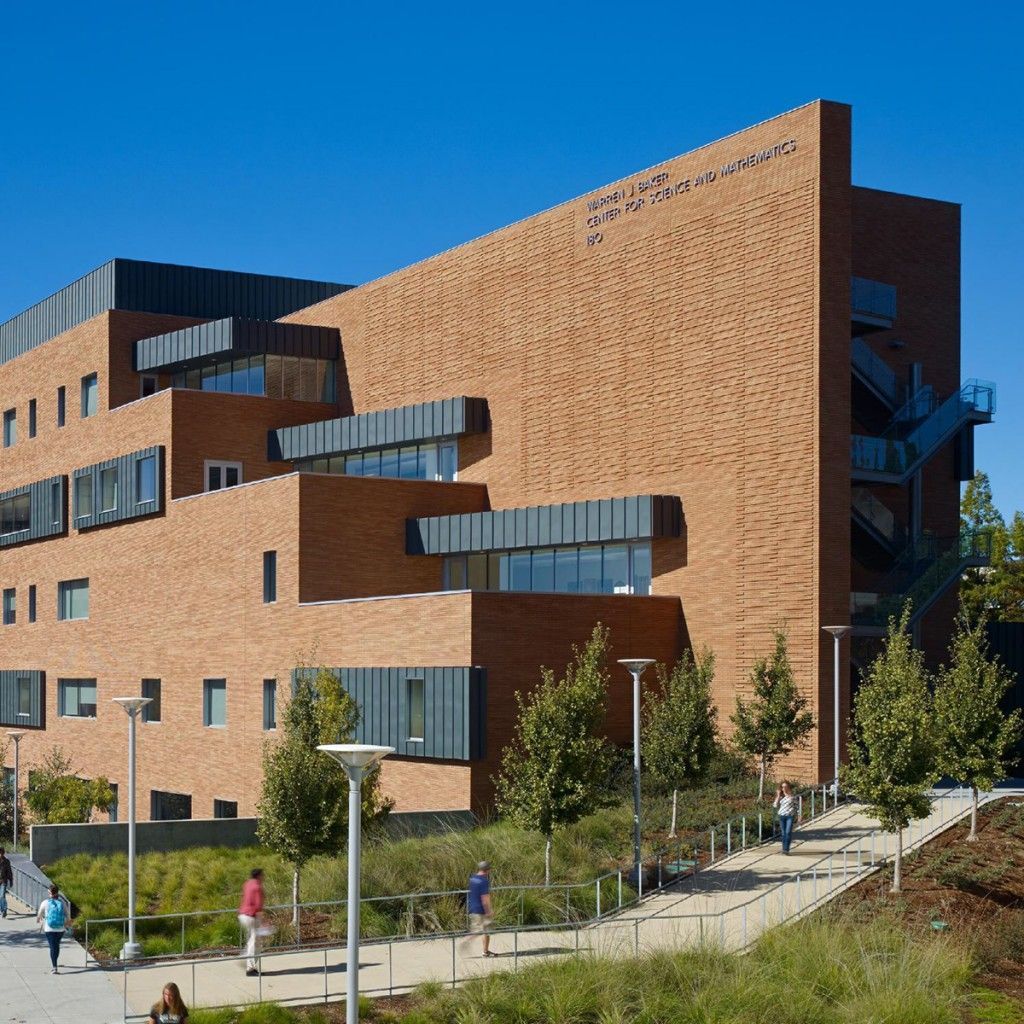

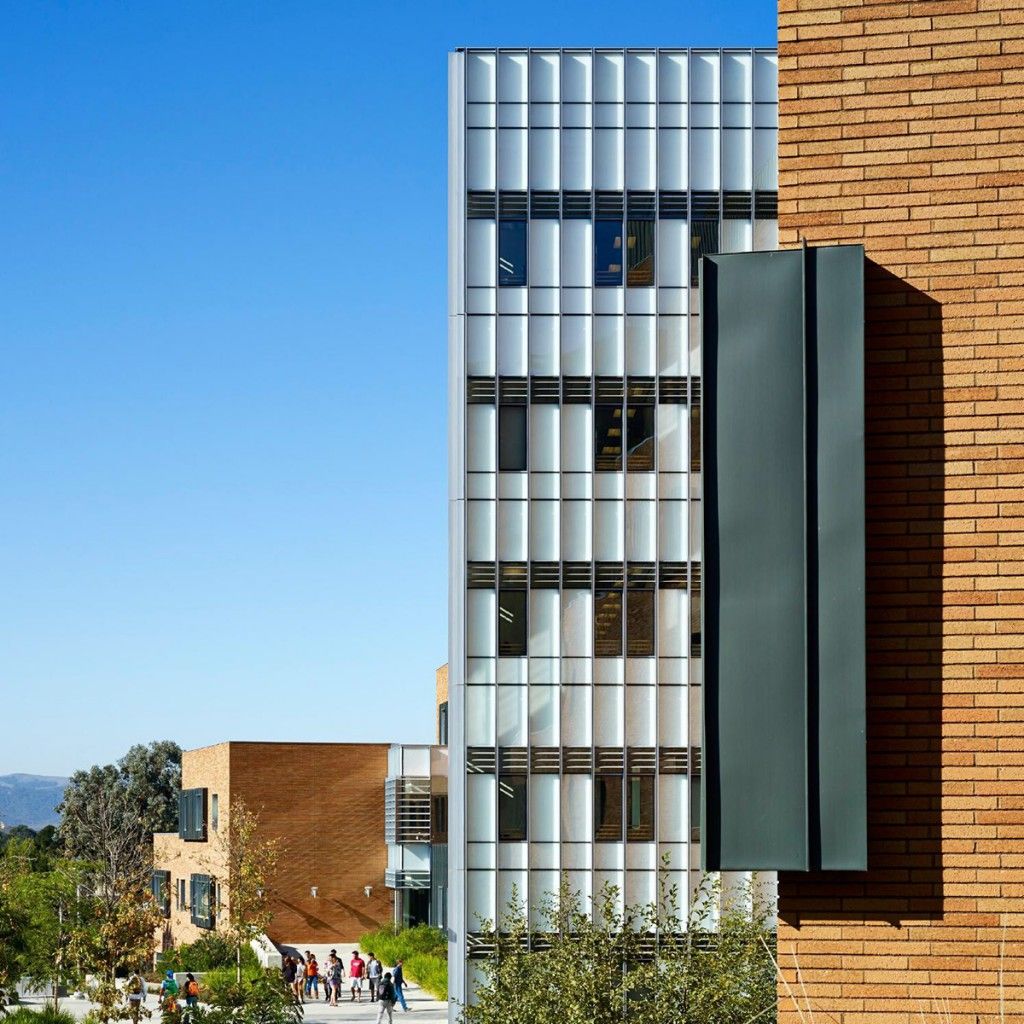

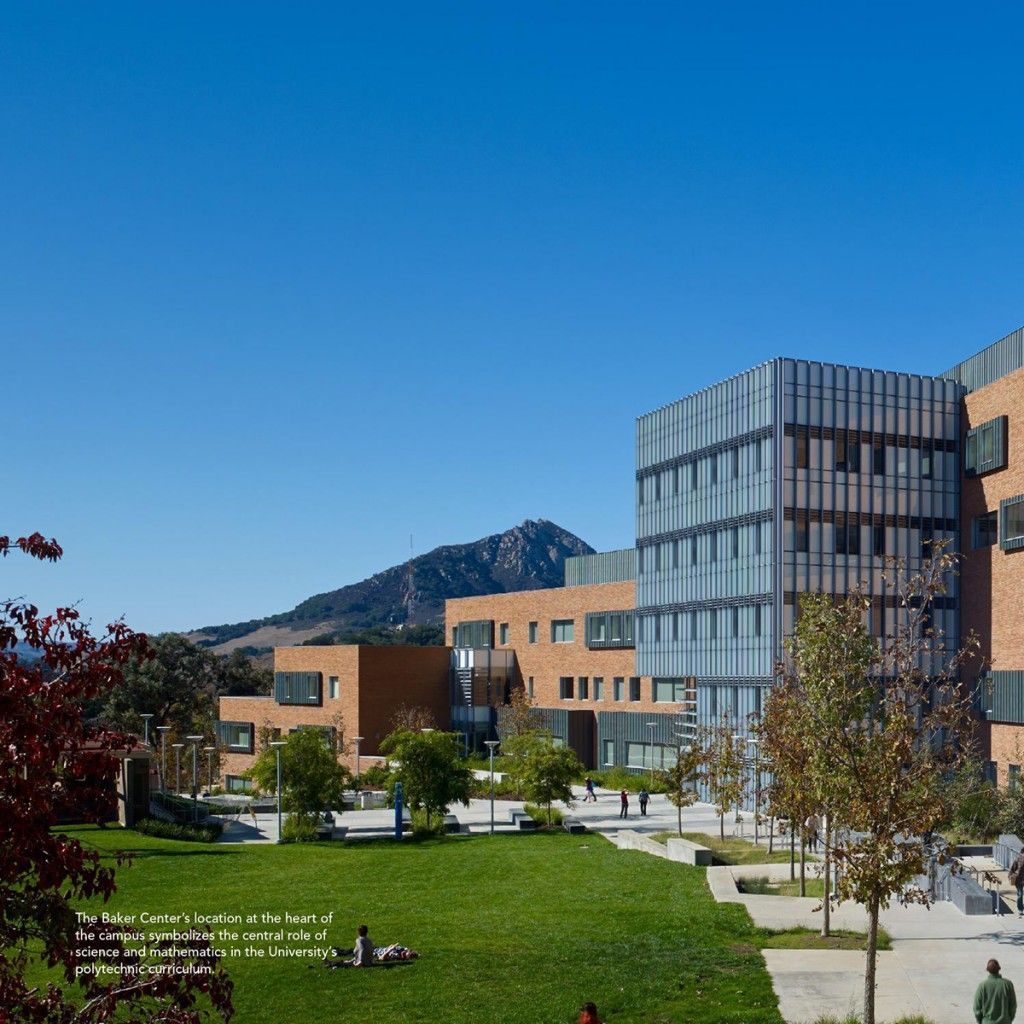

CSI Architectural Metal Inc had the privilege to fabricate and supply an engineered zinc system for roofs and walls at Cal Poly Technic University in San Luis Obispo CA, covered under CSI's 20 year Weather-tightness warranty.
